Tank Level Sensor

Tank Level Sensor

$81.20 AUD
$81.20 AUD
Sale Sold out
Shipping calculated at checkout.

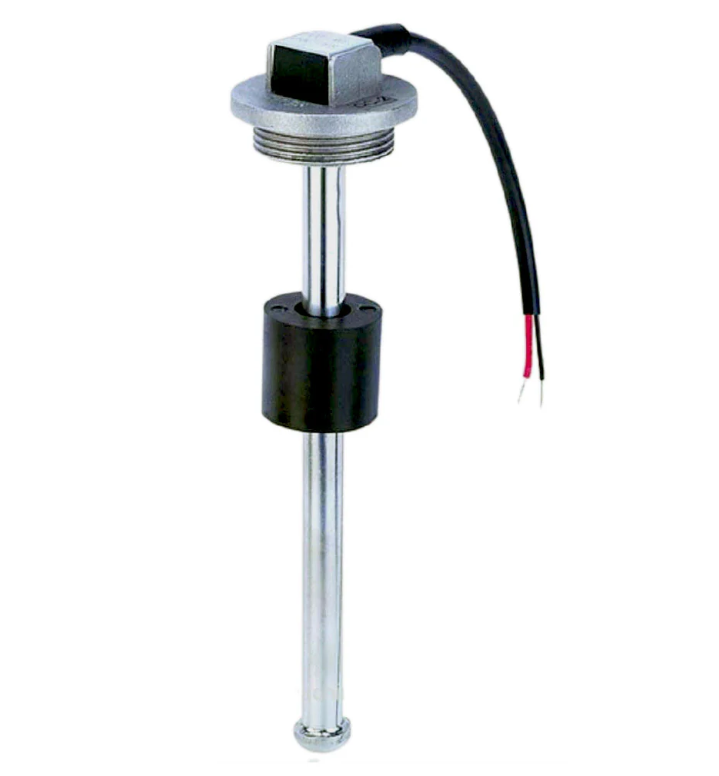

Utilizing a magnetic field to control the reed on-off switch, the product features a long service life and protection against vibration. The body is made of 316 Stainless Steel with customisable lengths up to 2000mm. Sporting a 1 1/4" BSPP thread, various types of flanges are available for fitting with a fuel tank if required (available HERE from our store).

  • Output signal 0-190 Ohms
  • Assembly: BSP 1 1/4" thread twist-in, or NPT thread twist-in.
  • Mounting: -38mm×2.6mm O-ring -43mm×3.5mm O-ring
  • Protection rank: IP67
  • Applying the principle of magnetic field to control the reed on-off switch, featuring long usage life, anti-vibration, anti-explosion, etc.
  • Rated Power: 125mW
  • Rated Current for alarm switch: 500mA
  • Output signal: Resistance control signal, 0~190Ω , 240~33Ω, or customized as required; You can also choose current control signal, 0~20mA, 4~20mA or Voltage control signal, 0.5~4.5VDC, 0~5VDC.
  • Resolution range: 10~40mm
  • Operating temperature:-40℃ ~+85℃

PLEASE NOTE: for sensors over 600mm long a separate shipping quote may be required for your region. We will contact you as soon as the order is received to confirm final pricing.
