MEMU-7i digital boat gauges unit

MEMU-7i digital boat gauges unit

$959.00 AUD
$959.00 AUD
Sale Sold out
Shipping calculated at checkout.

AVAILBALE AUGUST 2025

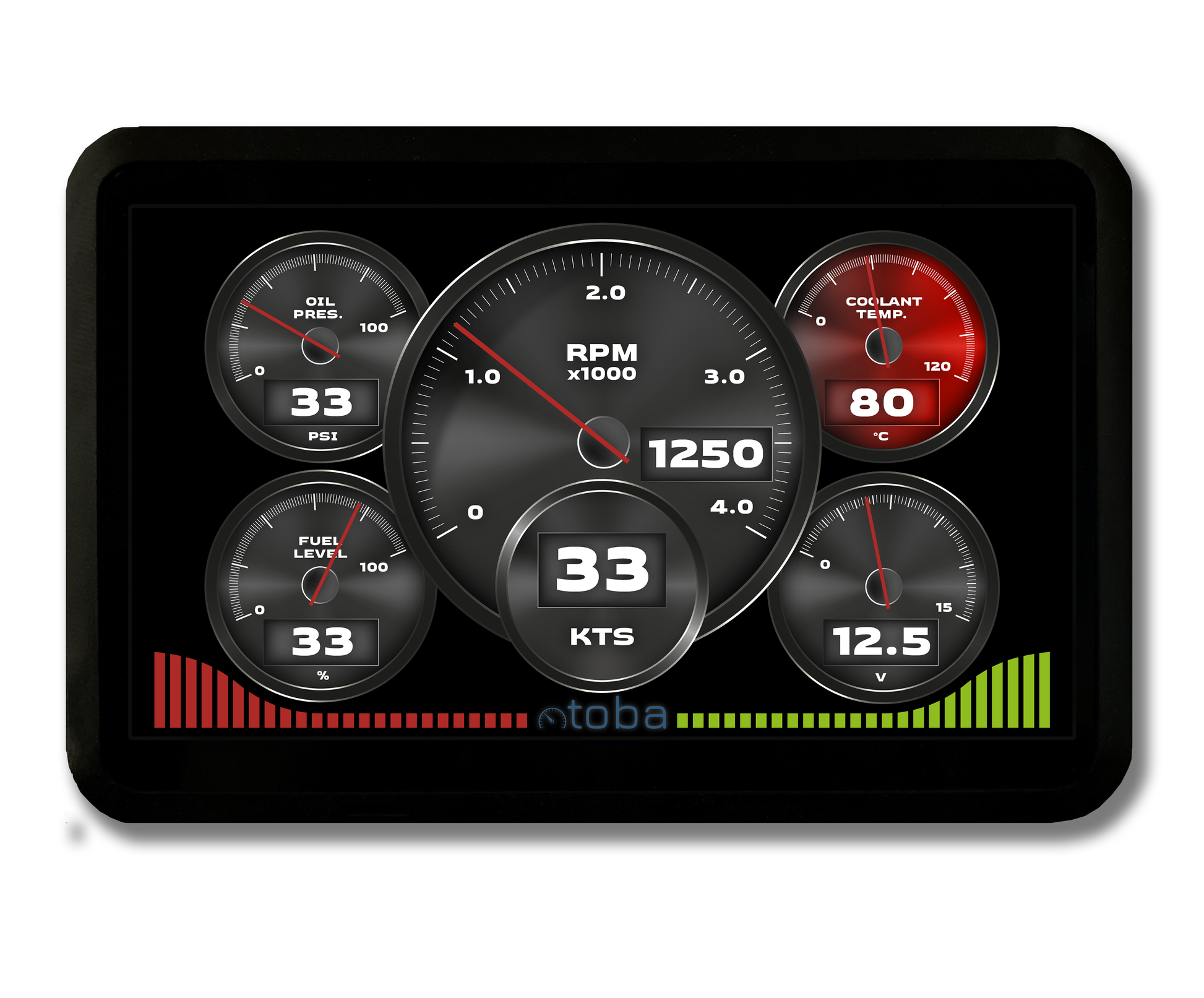

Toba Main Engine Monitoring Unit (MEMU-7i) is a universal solution for replacing analogue gauges on your boat's helm, and the next generation of 10-in-1 digital boat gauges unit from the original MEMU-7.

Designed, manufactured and quality-controlled right here in Perth, Western Australia, this 7-inch digital touchscreen module is completely universal and configurable to fit your specific vessel, eliminating the need to replace working sensors.

The MEMU-7i is compatible with all marine engines that use analogue sensors that use resistance, voltage or pulse as signals.  If the engine is not fitted with analogue sensors by default, those sensors can be fitted, and the unit can be used.

This unit has 8 input channels, which are entirely configurable by the user, along with reading the unit's own voltage (voltage from the engine harness powering the unit) and GPS speed.

With the addition of extra counter inputs, the MEMU-7i is now able to report on fuel flow. This required additional sensors, and for diesel application fuel flow from one engine required two extra sensors and uses two of the unit's eight inputs. Fuel flow sensors can be purchased from our store or through a Toba dealer. This allows the operator to monitor the rate of fuel burn in real time at the helm.

Australian Patent Application no. 2023902335

Monitored engine metrics

Examples of engine metrics monitored by the unit (some may require additional sensors):

  • Oil pressure
  • Tachoneter
  • Unit's supply power voltage/battery bank voltage
  • Any tank level
  • Fuel flow
  • GPS speed
  • Rudder position (or trim)
  • Temperature
  • Boost
  • Intake temperature
  • Throttle position

Features

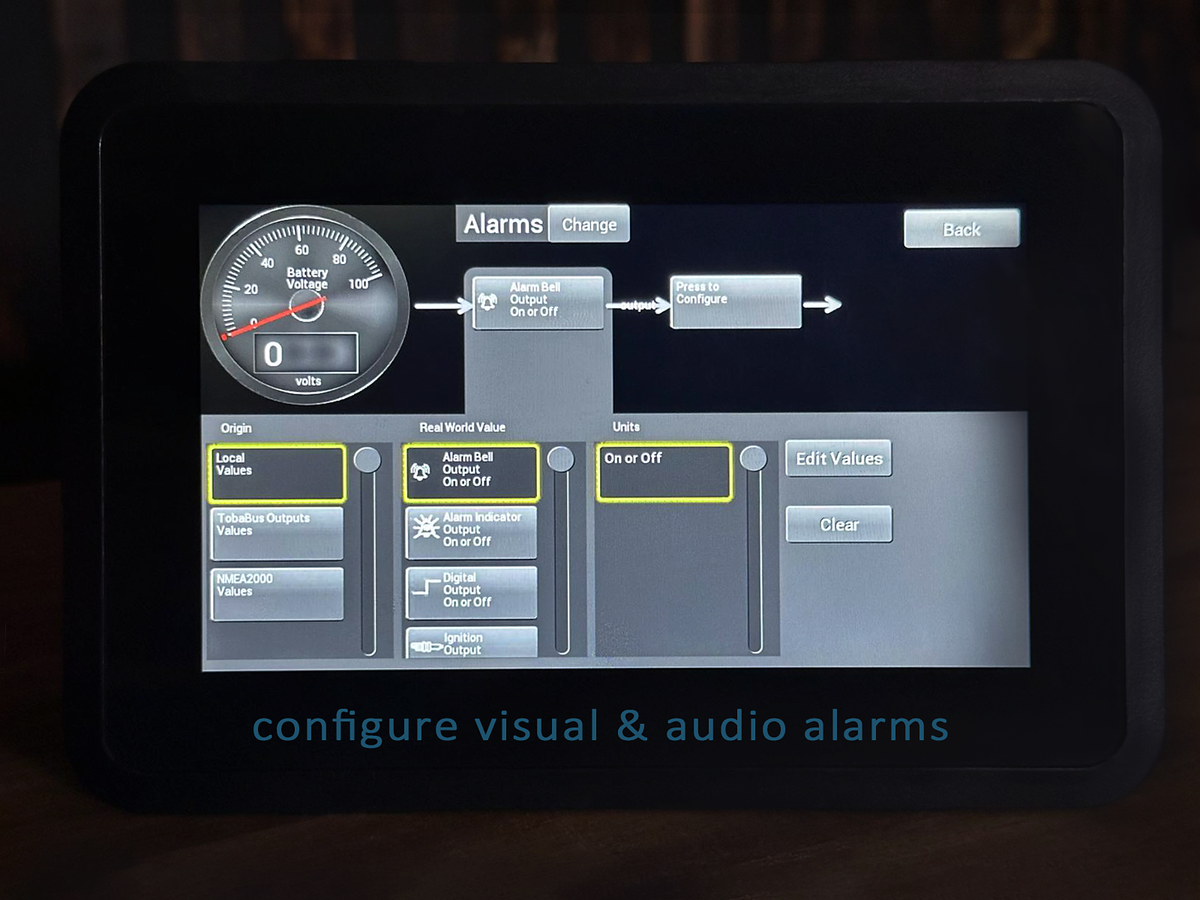

  • Audio & visual alarming
  • Toba BUS device-to-device communication (sharing data between Toba units eg. rudder position, upper and lower helm units, etc.)
  • Firmware updates with connection to WiFi
  • No need to replace working sensors and wiring (on the provision of good electrical condition)
  • Screen resolution of 1024x600
  • Screen brightness of 1800cd/m2
  • Water-resistant ABS plastic case

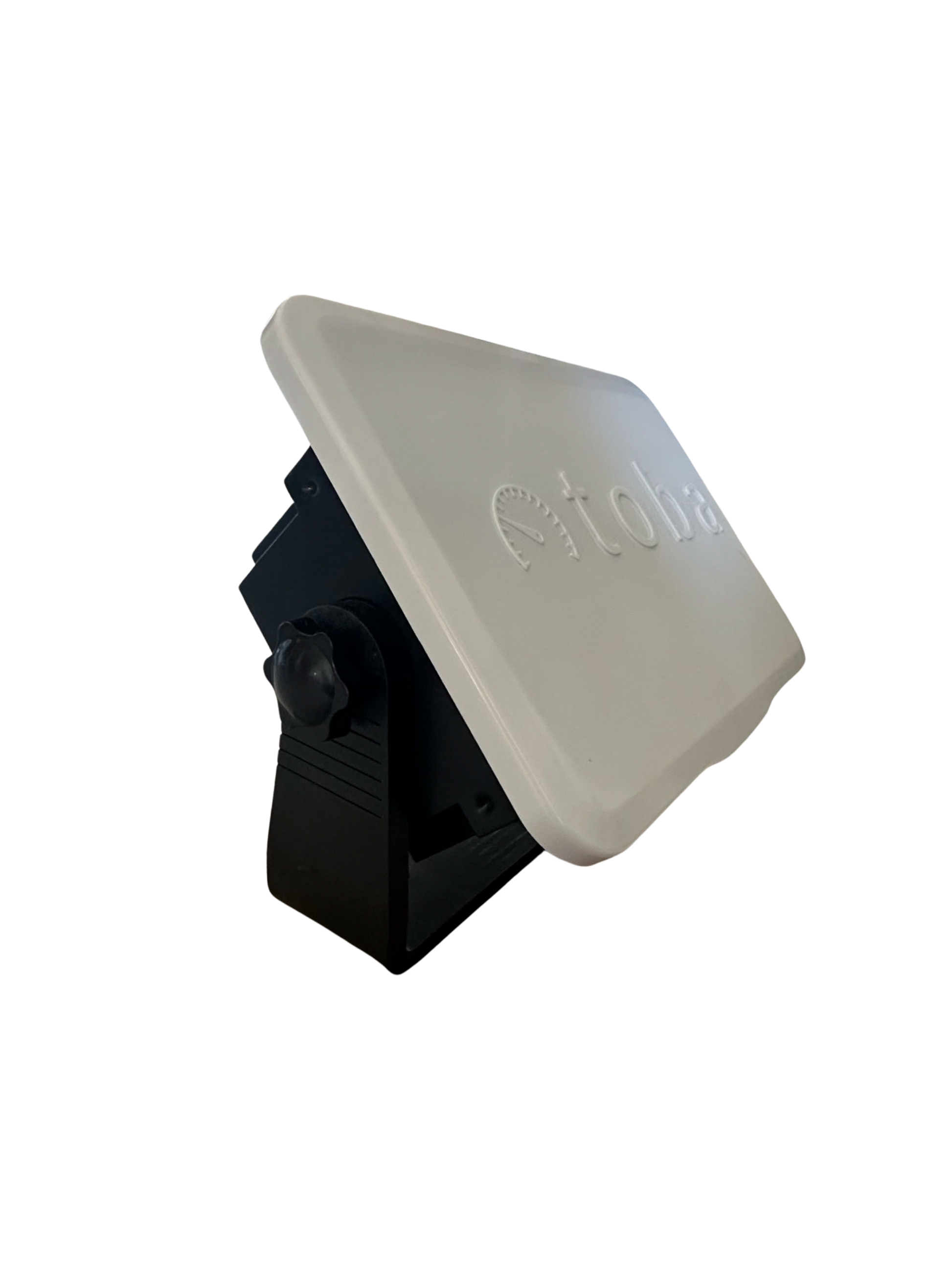

  • Two types of mounting solutions: flush mounted and bracket mounted (all parts included)
  • 16-pin waterproof main connector
  • Day-night display options, dimmable screen brightness
